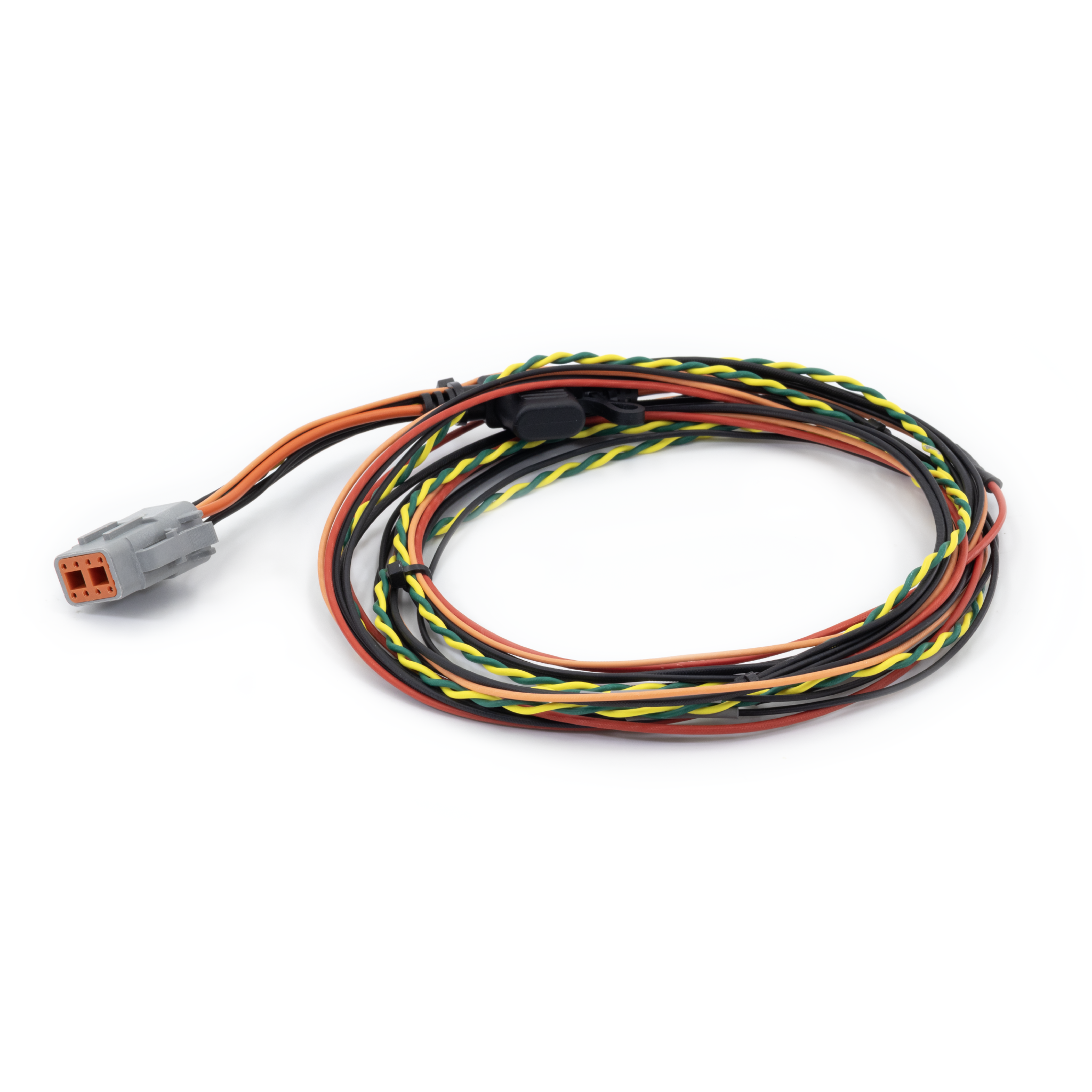

A flying lead harness is a wiring harness that is unterminated at one end and has an excess length of wire so that installation can be customized by the end user. That makes this section of the ReFlex+ Install Harness truly universal.

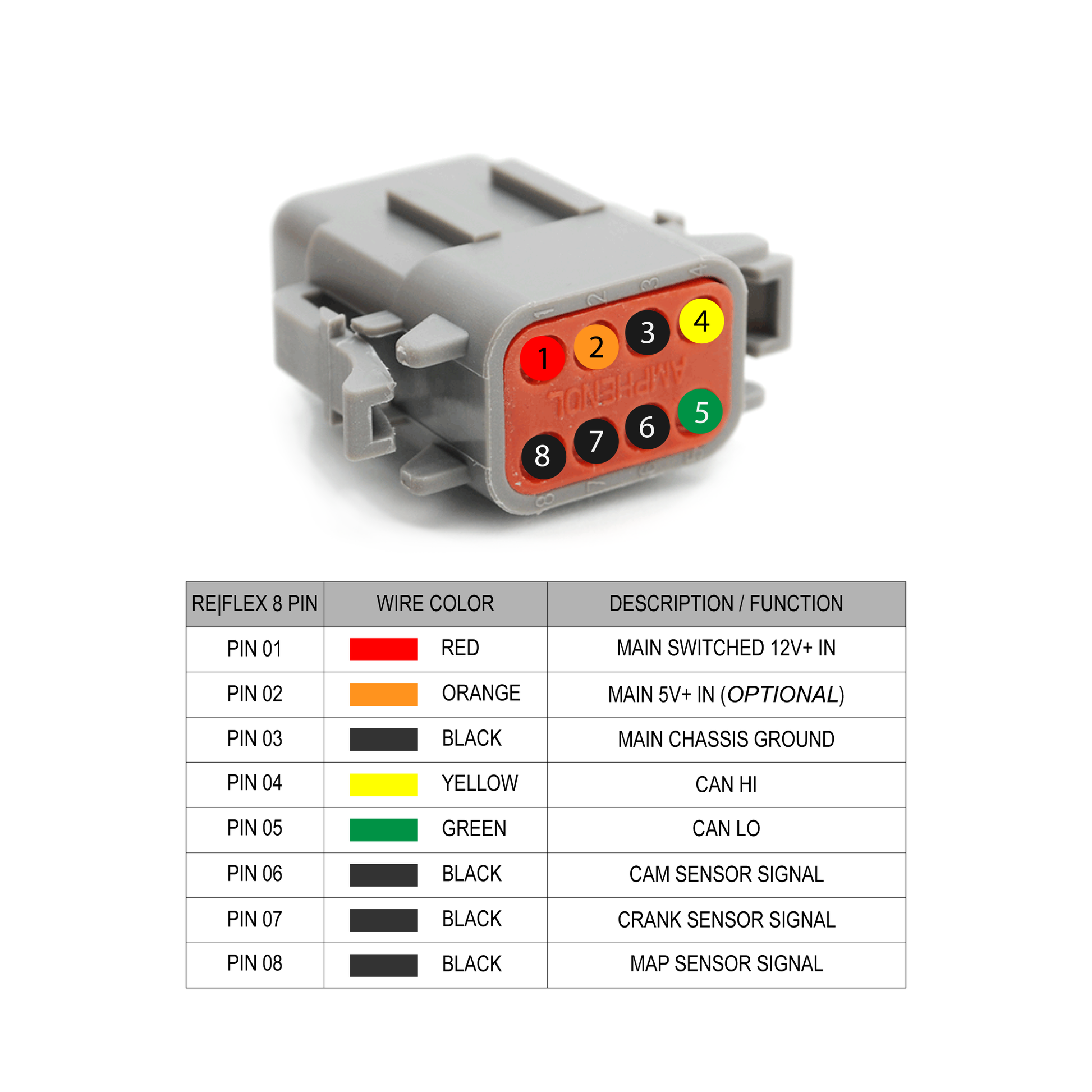

On one end, this harness has a 8-Pin connector to plug into any one of our ReFlex+ Main Injector Harnesses. The other end of each wire is unterminated and will be connected to the appropriate sensor, ground, or power supply based on installation instructions. Each harness has a wire for:
- Switched +12v Input w/ inline fuse
- +5v Input
- Ground
- Can HI
- Can Lo
- Cam Sensor Signal
- Crank Sensor Signal
- Map Sensor Signal
Please Note: This harness allows the connection of a ReFlex+ to any vehicle, however there are different ReFlex+ Control Units that are compatible with different vehicles based on MAF, MAP, and other sensor data. If you do not see your specific vehicle mentioned please inquire as calibration is required for signals to read correctly.
All products and services on this website are designed for competition use only. All other uses are contrary to federal law. If you intend this product for any purpose other than competition use DO NOT purchase or install this product.
Unless otherwise noted, ALL products and services purchased directly or from a reseller of MOTIV Motorsport are sold with the sole intention for off road or race track use only. By completing an order on our website, the buyer and intended individual using our parts and tuning services understands and agrees to the following statements and thus releasing MOTIV Motorsport of all liability.
MOTIV Motorsport products and tuning services may not comply with some State, Federal, Provincial and/or Local laws, ordinances, or regulations. The buyer takes full responsibility in regard to the use of these products on their automobile, which may or may not conform to all applicable laws and regulations for on road or highway use. The buyer acknowledges that MOTIV Motorsport has made him or her aware that these products and services are intended for off road or race track use only. The buyer absolves MOTIV Motorsport from all responsibility in ensuring that his or her automobile is compliant with all State, Federal, Province, Local ordinances and emissions. This waiver of compliance covers all past and future purchases from MOTIV Motorsport.
ALL MOTIV MOTORSPORT PARTS AND SERVICES ARE LEGAL FOR USE ONLY IN COMPETITION RACING VEHICLES, AND ARE NOT LEGAL FOR USE IN ANY OTHER MOTOR VEHICLE OR CAPACITY.
These parts may only be used on competition racing vehicles operated exclusively on a closed course in conjunction with a sanctioned racing event. Competition-only motor vehicles may not be driven to a racing event on a public highway and must be transported on a trailer or other carrier.
USE OF THESE PARTS IN ANY OTHER VEHICLE OR MANNER MAY SUBJECT YOU TO FINES AND PENALTIES FOR VIOLATION OF FEDERAL AND/OR STATE LAW. IN ADDITION, SUCH USE WILL VOID YOUR WARRANTY FROM MOTIV MOTORSPORT, AND CAN VOID YOUR VEHICLE'S WARRANTY.
It is your responsibility to comply with all applicable federal and state laws relating to use of these parts, and MOTIV Motorsport hereby disclaims any liability resulting from the failure to use these parts and tuning services in compliance with all applicable federal and state laws.
ReFlex+ Install Harness - Flying Lead
